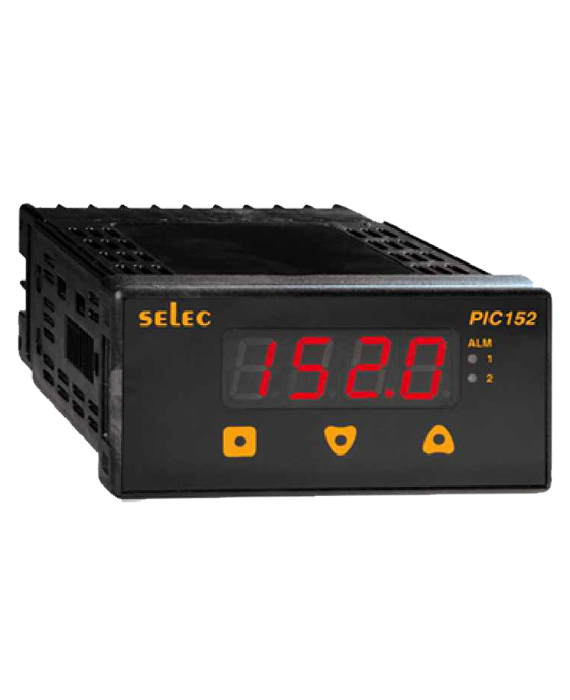

Process Indicator PIC152N




Description

Process Indicator PIC152N
Description2 Alarm outputs with retransmission
Display4 Digit, 7 Segment LED: 0.5"
LED IndicationAlarm ON (2 Nos)
Error IndicationsOver Range
Under Range
Open Sensor
TC Reverse
Alarms2 Nos
Alarm ModesHigh Alarm
Low Alarm
Band
Fail Output and Fault Diagnosis
Hysteresis0.1 to 99.9°C
AnnuciatorProgrammable
Reset ActionAutomatic of Latched
Reset Rating5A @ 250V AC or 24V DC
Retransmission Output (Optional)0/4 to 20 mA DC, 0 to 5V DC, 0 to 10V DC
Sensor Supply24V DC, 30 mA
Communication
Supply Voltage85 to 270V AC/DC
Optional -24V AC
Operating Temperature0 to 50°C
Storage Temperature-20 to 75°C
Humidity (Non-condensing)95% RH
Dimensions48mm x 96mm
Weight240gms
