Description
Common Features
Series 600 | |
Mounting | DIN Rail Mounting |
Size | 17.5 (W) x 90 (H) x 60 (D) |
Reset | On interruption of power; Reset time less than 100ms 600DT has front key reset option also |
LED Indication | Power Relay |
Relay Rating | NO/5A, NC/3A @ 250V AC 600DT has 8A @ 250V AC |

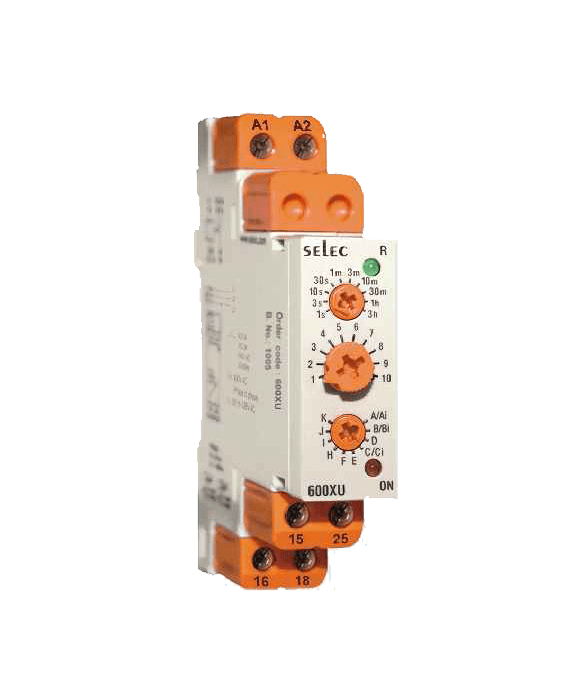

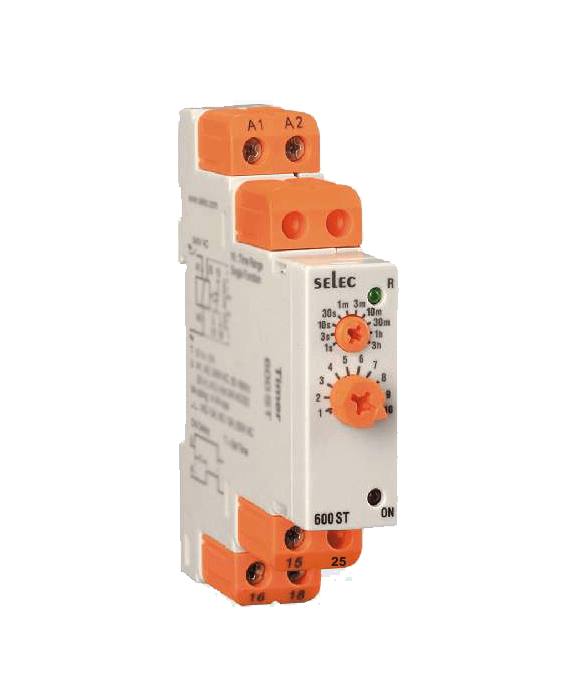

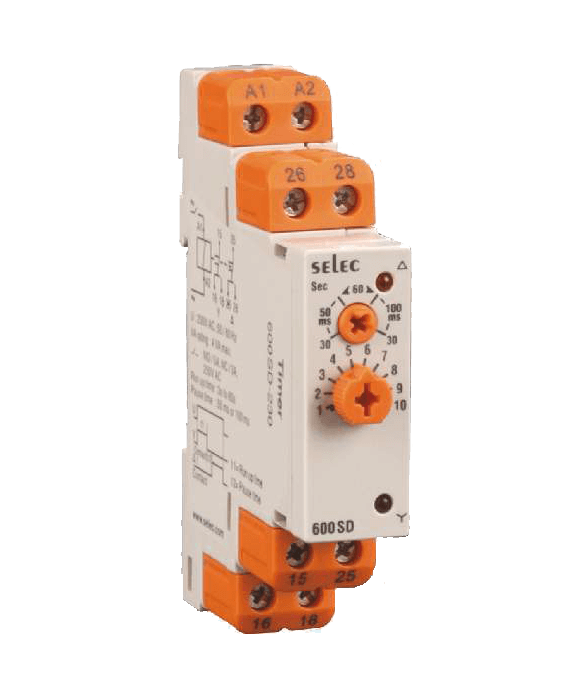

600ST | 600XU | 600DT | 600U | 600SD | |
Description | Single Function 10 Time Ranges | 13 Single Functions 10 Time Ranges | 15 Single Functions 8 Time Ranges | 5 Single Functions 10 Time Ranges | Star Delta |
Setting Accuracy | ±5% of F.S. | ±5% of F.S. | ±0.1% of set time or ± 50msec (whichever is greater) For Y contact operation: +100msec | ±5% of F.S. | ±5% of F.S. |
Repeat Accuracy | ± 0.5% | ± 0.5% | ±0.1% | ± 0.5% | ± 0.5% |
Output Contacts | 1 C/O (SPDT) | 1 C/O (SPDT) | 1 C/O (SPDT) | 2 C/O (DPDT) | 1 C/O relay each for star & delta |
Supply Voltage AC: 50/60 Hz | 240V AC | 20 to 240V AC 12 to 240V DC | 20-240V AC/DC | 20-240V AC/DC | 230V AC 110V AC |
F.S = Full Scale
